PURROS PG-20G Drill Bit Grinder Automatic Drill Bit Grinding Machine Manufacturers

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

PURROS PG-20G Automatic Drill Bit Grinding Machine. We are drill bit grinder manufacturers and drill grinding machine suppliers. Our products are sold all over the world.

Description

PRODUCT DETAIL

1. Accurate and rapid,easy to operate,with no skill requirement to grind.
2. Economic and saving cost,improve efficiency.
3. With Taiwan Grinding Wheel,only one piece can complete all procedure,accurate angle and long service life.
4. The electrically controlled and poweful DC motor, stable frequency, strong horsepower and save drill bit’s life.
5. It can sharpen the drill bit front cutting lip,lip relief angle.
6. It can be effective co-ordination with the drilling material and speed, can controll the quality and accuracy of the workpiece, extend the life of the drill bit.
Standard with CBN grinding wheel for the HSS material, Optional SDC grinding wheel for the carbide material.

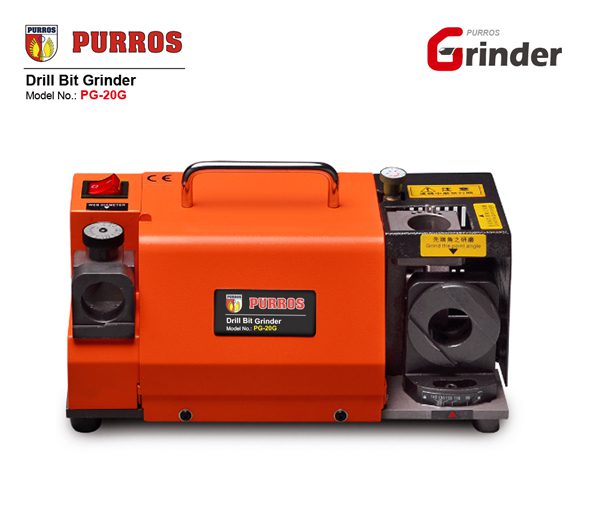

PURROS PG-20G Automatic Drill Bit Grinding Machine.

PG-20G Grinding Range



SPECIFICATION

Model: PG-20G
Grinding Range: Φ3- Φ20
Point Angle: 100(90)°~135°
Power: AC220V
Motor: 120W
Speed: 4800RPM
Dimension: 32*19*20CM
Weight: 11KG
Standard Model:







Grinding wheel: CBN (for HSS)×1
Types of Collet: Φ3, Φ4, Φ5, Φ6, Φ7, Φ8, Φ9, Φ10, Φ11,Φ12,Φ13
Types of Collet:  Φ14, Φ15, Φ16, Φ17, Φ18, Φ19, Φ20
Spec of Collet Chuck:  ( Φ3- Φ13)×1,  ( Φ14- Φ20)×1




Optional Model:



Grinding Wheel :SDC (for Carbide)
Types of Collet:  Φ2.5 ,  Φ3.5 ,  Φ4.5 ,  Φ5.5 ,  Φ14 ,  Φ15





1 review for PURROS PG-20G Drill Bit Grinder Automatic Drill Bit Grinding Machine Manufacturers

  1. Rated 5 out of 5

    This tool is better than sharpening by hand. It works much better than the high dollar drill sharpener. Easy to use and works great. Only takes a few seconds to sharpen even the worst bits. Make sure you buy the ‘PG-20G’ model for your best results.
