- The working table uses the dovetail guide rail, good rigidity, steady bed platform, dexterous operation.
- Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material’s cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
- Grinding is a delicate process among the different types of machining operations. This operation helps to obtaining finishing to the work material.. This device stays very effective for performing complicated grinding.
Universal tool grinder application
|About worktable Diameter:||300MM|
|About worktable traveling schedule:||150MM|
|Rotating Angle of Wheel Head:||360°|
|Grinding Wheel Size:||125×50×32MM|
|Standard Equipment:||50C, 50H can grind slot miller, face and side cutter, lathe tool,
hobbing cutter, reamer bit etc.
|Option Equipment:||50E grind spiral milling cutter ball end mill,R type lathe tool,
graver and other taper milling cutter.
50K can grind drill bit ,screw tap,side mill,round bar and so on.
50D can grind end mill ,side mill and so on.
|About worktable diameter:||300mm||350mm|
|About worktable traveling schedule:||150mm|
|Grinding wheel size:||Φ125X50XΦ32mm||Φ150X16XΦ32mm|

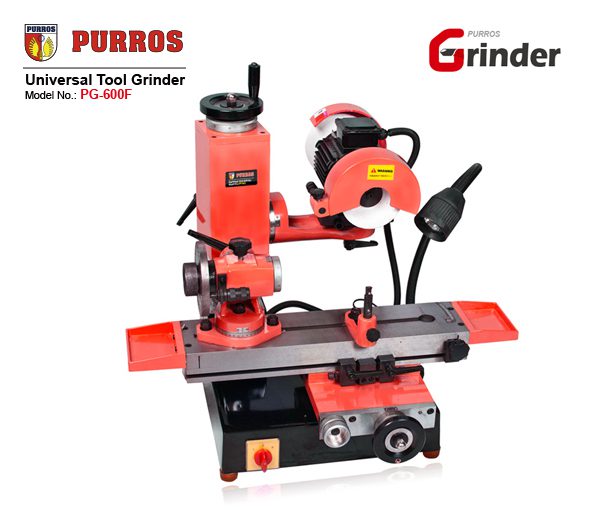

The worktable of PG-600 uses the dovetail guide rail, good rigidity;
And PG-600F uses two high precision straight line roiling guide rails, steady bed platform, good movement. PG-6025 can grind in hole and outer annulus.
Standard accessories can grind slot miller, face and side cutter, lathe tool, hobbing cutter, reamer bit etc.
Choosing 50E can grind spiral milling cutter, ball end mill.
Choosing 50K can grind drill bit, screw tap.
