Analysis of the influence of the helix angle of the drill bit on the service life of the drill bit

Helix Angle is the angle between the helix line on the helical groove and the bit axis after it expands into a straight line. Since the lead of each point on helical groove was the same, the helical angle was different at different diameters of the drill bit, with the maximum helical angle at the outer diameter, and the smaller the helical angle was the closer to the center. Increasing the helix angle will increase the front angle, which is conducive to chip removal, but the rigidity of the drill will decrease. Standard twist drill helix angle is 18 ° ~ 38 °. For bits with smaller diameter, the helix angle should be smaller to ensure the rigidity of the drill bit.

According to the shape of twist drill, the helix angle of each point on the cutting edge is variable, and helix angle directly affects the front angle of the main cutting edge. The larger the helix angle is, the sharper the cutting edge will be and the lighter the cutting will be, otherwise it will cause severe machining hardening and wear the blade quickly. According to the cutting tool design data, helix angle of 30 ° can satisfy the use requirement, at the same time, it can be mass production.

PURROS there are many sharpening machines. If your tools wear a little bit, you can use our tool grinder. Before you buy a new tool, you can use a grinded tool for a period of time to save manufacturing costs.

Manual grinding of high speed steel drill bits

  1. The edge is placed flat against the grinding wheel surface

This is the first step in the bit’s position relative to the grinding wheel. Some inexperienced operators lean on the grinding wheel and start sharpening the edge before they even straighten it out. This must not wear well. The “edge” here is the main cutting edge. “Leveling” means that the main cutting edge of the sharpened part is in a horizontal position. “Wheel surface” refers to the surface of the grinding wheel, “against” is slowly close to the meaning. At this point, the drill bit cannot touch the grinding wheel;



  1. Oblique drill shaft repair sharp Angle

Here refers to the axis of the bit line and the location of the relationship between grinding wheel surface, “Sharp Angle” is the half of the point Angle 118 ° ± 2 ° , it’s about 60 °. This position is very important, which directly affects the size of the point Angle of the drill bit, the shape of the major cutting lip and the chisel edge Angle. Do not neglect to lay down the bevel Angle in order to lay down the cutting edge, or to lay down the axis in order to lay down the cutting lip. These errors are common in practice. At this point, the drill bit is ready to contact the grinding wheel in the correct position;



  1. From the edge to the back of the grinding

This refers to the grinding of the bit’s edge slowly along the entire back surface, starting from the edge of the bit. This facilitates heat dissipation and sharpening. At this point, the bit can gently contact the grinding wheel for a small amount of edge grinding. When grinding the edge, observe the uniformity of spark, adjust the hand pressure in time, and pay attention to the cooling of the drill bit. When the edge grinding starts again after cooling, continue to set the position.

www.drillbitgrinder.com The Universal Tool Grinder is offered by Purros Machinery Co., Ltd., a professional OEM/ODM tool grinder manufacturer and supplier, End Mill Grinder, Twist Drill Grinder, Lathe Cutter Grinder, Carving Tool Grinder, Drill Sharpener, Universal Grinder, etc.

The Universal Tool Grinder is offered by Purros Machinery Co., Ltd., a professional OEM/ODM tool grinder manufacturer and supplier, End Mill Grinder, Twist Drill Grinder, Lathe Cutter Grinder, Carving Tool Grinder, Drill Sharpener, Universal Grinder, etc.

Manual grinding of high speed steel bit is subject to human factors. Manual grinding will result in a large error of the drill bit due to the difference between human experience and personal intuition. But machine repair and grinding completely avoid this problem. Drill bit grinding machine is more accurate, and the error is small, the human factors are relatively small. Operators do not need to go through professional drill grinding training can be on duty. The operation of the drill bit grinding machine is very simple and the efficiency of the drill bit grinder is very high. Therefore, now many companies that use drill bits choose to buy a drill bit grinding machine to repair the damaged drill bits, which saves a lot of cost. Our tool grinding machines are of very good quality and have been well received by our customers in the market. Welcome to inquire purchase.

Christmas Best Wishes to Customers

www.drillbitgrinder.com Christmas Best Wishes to Customers from drill bit grinder

Christmas Best Wishes to Customers!

It seems that Christmas time is here once again, and it is time again to bring in the New Year. We wish you A Very Happy and Joyful Christmas filled with joy and love. And hope we can develop our business and friendship further!

Standard of tool dressing

Whether or not you have a good set of standard is the standard to measure whether a center is professional. Standard of grinding, the general rules for different Cutting tool in Cutting different materials when the Cutting edge of technology parameters, including the blade Angle, Cutting Lip Angle, rake Angle, Lip Clearance Angle, blade, chamfering etc parameters (in the carbide drill, make the blade passivation process is called “blade”, pour the width of the blade and the Cutting material, generally between 0.03-0.25 Mm. The process of chamfering on the edge (tip) is called chamfering. Each professional company has its own years of review and repair standards.

The use and safety management of drill bit grinder grinding wheel

The use and safety management of drill bit grinder grinding wheel

Differences between HM drill and HSS drill:

HSS drill bit: Cutting Lip Angle is usually 118 degrees, sometimes greater than 130 degrees; The blade is sharp; The precision (edge elevation, symmetry, circumferential pulse) is relatively low. There are many ways to mend a chisel edge.

HM drill bit: Cutting Lip Angle generally 140 degrees; Straight slot drills are usually 130 degrees and three-edge drills are generally 150 degrees. The blade and tip (edge) are not sharp and are often passivated, or referred to as chamfering and chamfering; High demand for accuracy. The chisel edge is often cut into an s-shape for cutting.

Lip Clearance Angle:

The Lip Clearance Angle of the blade is very important for cutting tools. Lip Clearance Angle is too big, the blade is flabby and easy to tie up. Lip Clearance Angle is too small, then friction is too large, cutting disadvantage.

The Lip Clearance Angle of the cutter varies with the cutting material, type and diameter of the cutter. Generally speaking, the Lip Clearance Angle decreases as the cutter diameter increases. In addition, if the cut material is hard, the Lip Clearance Angle is smaller, otherwise, the Lip Clearance Angle is larger.

The drill bit grinder developed by PURROS is very popular in the market, and we can accept OEM custom service at the same time!

Why are so many customers buying universal tool grinding machines now?

The universal tool grinder has been a hot seller in recent years. A large part of the reason is that more and more people have realized its importance and its advantages. Why don’t we take the worn-out tools to a professional organization for grinding and choose to buy the Universal Tool Grinder for grinding?



What kind of tools need grinding?

Most cutting tools require grinding and are designed with future grinding in mind.

The small-diameter taps and most of the indexable blades give up the grinding due to their low price and relatively high grinding cost.

Some of the machined cutting tools of the groove can not be sharpened because the diameter should be reduced after grinding.



Why do tools need sharpening?

Tool grinding is a low carbon activity to reduce production cost and resource consumption.



Key points of tool grinding

Sharpen the dull and worn original blade, and grind the new blade on a better matrix.

The wear of the guide part must be taken into account comprehensively for hole cutting tools.

sharpening machines for drill bit, buy drill bit sharpening machines, drill bit sharpening machines, drill bit grinder, drill bit grinding machines, drill bit grinder manufacturer

Buy sharpening machines for tools, please click here.

If you are interested in our products or want to be agent of our tool grinding machines, please contact us. We’ll give you the best price.

How to deal with tool wear?

Tools is arguably the most commonly used key component, and it’s also easy to wear out. How to reduce the tool wear is very important.

Common causes of tool wear:

All components of the cutter will be worn by milling and shaping materials. If one of the components of the cutter is damaged, such as the blade tip, steel body, gasket or snap spring, the entire cutter should be replaced to prevent damage to the relatively expensive tool holder system. Moreover, the replacement of the cutter holder system is more complicated. Therefore, how to reduce the tool wear is very important.

How to deal with tool wear with drill bit grinder

Common tool wear includes the following reasons:

  1. Incorrect installation;
  2. Use components from different manufacturers;
  3. Choose the wrong type of cutter (different type of cutter should be selected for different types of machine);
  4. Milling planer materials are bonded and continuously accumulated on the cutter, which is generally caused by incomplete cleaning;
  5. Insufficient water supply in the sprinkler system inside the casing of milling plane.

Universal Cutting Tool Grinder, Universal Scoring Blade Sharpening Machine, Universal Grooving Cutter Sharpening Machine, Universal Cutter Grinder Manufacturer, Cheap Universal Cutter Grinder, PG-600F Universal Tool Grinder

Universal Tool Grinder PG-600F

How to reduce tool wear?

Tool wear is unavoidable, but can at least be minimized. Adequate water supply is the basic premise to ensure normal rotation of cutter. According to the material selection of milling cutter, can also optimize the use and reduce wear.

  1. Select the suitable working condition milling tool;
  2. Pay attention to daily thorough cleaning;
  3. Regularly check the cutter, and timely find and deal with the wear or damage of components;
  4. Regular maintenance and inspection of sprinkler system;



Only through proper maintenance can the wear of key parts be minimized, thus greatly saving cost and ensuring efficient operation of the machine. If the cutter is only slightly worn, a cutter grinder can completely repair the wear. The use of universal tool grinder can reduce the waste of many tools, saving cost and time.

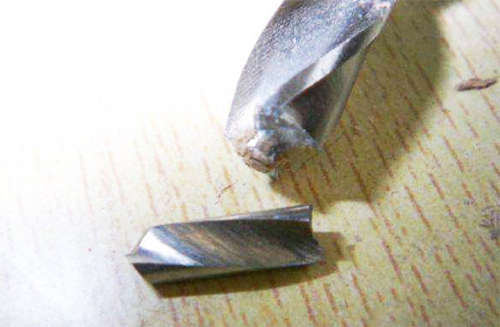

How to solve the problem after the bit is broken?





Cause Solution
Bending, deformation, sliding Increase the rigidity of tool and machine tool, increase the rigidity of workpiece and jig
Lip Relief Angle is too small Regrinding Lip Relief Angle
High Stock Removal To reduce Stock Removal
Bit wear Use drill bit grinder to grinding
Blocking of chips Re-select the alloy bit (chip groove, helix Angle);

Re-select machining method (adjustment of feed rate, step-step method, etc.)

Poor cutting Increase the rigidity of tools and machine tools

Increase the rigidity of workpiece and jig

Predrilling center hole

The cutting plane is first adjusted or processed into a horizontal plane with a guide sleeve

What are the difficulties in drilling stainless steel?

The difficulties of stainless steel material processing mainly include the following aspects:

  1. High cutting force and high cutting temperature

This type of material has large strength and large plastic deformation during cutting, so the cutting force is large. In addition, due to the poor thermal conductivity of the material, the cutting temperature is increased, and the high temperature is often concentrated in the narrow area near the cutting edge, which accelerates the tool wear.



  1. Severe work hardening

Austenite stainless steel and some high temperature alloy stainless steel are Austenite structure. These materials tend to be hardened when machined, often several times as much as plain carbon steel. The cutter is cut in the hardened area to shorten the tool life.



  1. Easy to stick the tool

Both Austenite stainless steel and Martensite stainless steel have the characteristics of strong and tough chip and high cutting temperature. When the strong and tough chip flow through the front surface of the cutter, the phenomenon of bonding, welding and other adhesion will occur, affecting the surface roughness of the processed parts.



  1. Tool wear is accelerated

The above materials generally contain high melting point elements, large plasticity and high cutting temperature, which make the tool wear faster and the tool wear and change frequently, thus affecting the production efficiency and increasing the tool use cost.

Continue reading

Problems encountered during the operation of the alloy bit and its solution

What kind of material is suitable for what kind of tool?

What kind of material is suitable for what kind of tool?



Problem Solution
The front end of the alloy bit is broken Aimed at the bit again
Repair with a drill bit grinder
Improve stability, re-clamp parts, shorten overhang of alloy bit
Check speed/feed
The outer diameter of the alloy bit is worn Aimed at the bit again
Improve stability, re-clamp parts, shorten overhang of alloy bit
Check speed/feed
Repair with a drill bit grinding machine
Oversize/undersize holes To aim at tungsten steel drill bit
To reduce feed
Check speed/feed
The alloy bit is clogged with chips in chip removal tank Increase coolant flow, clean filter, clean bit coolant hole
To reduce feed
Improve stability, re-clamping the parts, shortening the overhang of alloy bit
Check speed/feed
Increase speed
vibration To reduce feed
Improve stability, re-clamping the parts, shortening the overhang of alloy bit
Check speed/feed
A small crack in the cutting edge Repair with a drill bit grinder
Aimed at the bit again
Check the carbide number
Increase speed
Hole asymmetry To reduce feed
Improve stability, re-clamp parts, shorten bit overhang
Check speed/feed
Alloy tool has short life Increase coolant flow, clean filter, clean bit coolant hole
Improve stability, re-clamping the parts, shortening the overhang of alloy bit
Check the carbide number
Check speed/feed

Introduction to the hole cutting tools which commonly used in NC machining

Hole cutting tools used in NC machining are:

  • High speed rake angle oil hole twist drill;
  • Helical groove Centre Drill;
  • 3 – flute Solid Carbide Drill;
  • S-type carbide drill bit;
  • Indexable carbide bit;
  • Carbide double edge boring tool;
  • Carbide single edge fine boring tool

In addition, some special industries of NC machining have their own often used hole tool. Such as the printed circuit board industry micro-cemented carbide integrated drill, refrigerator compressor industry integrated cemented carbide precision reamer and step twist drill.

Poly crystalline diamond, PCD, drill bits, HSS bits, High-speed steel, HSS, PCB, solid carbide bits, cutting edge, high-speed steel, carbon-steel bits, high-carbon steel, drill bit grinder

Compared with the tools used in ordinary machine tools, CNC tools have many different requirements, mainly with the following characteristics:

(1) good rigidity (especially rough tool), high precision, low seismic and thermal deformation; Good interchangeability, easy to change tools quickly;

(2) high life, stable and reliable cutting performance;

(3) the size of the tool is easy to adjust, so as to reduce the adjustment time of tool changing;

(4) the tool should be able to reliably break the scrap or roll the scrap, so as to facilitate the scrap removal;

(5) serialization and standardization to facilitate programming and tool management.
