Grinding Scope: Inner Bore, Excircle, Cyclinder, groove, Taper, End Milling Cutter, Disc Milling Cutter, Lathe Tool, Square or Diamond Cutting Tool, Gear Hobber, etc. According to different cutting tool to adjust the grinding wheel.
Two types of guide rails are used for the workbench, which is the high precision linear guide and rolling guide. A balanced workbench is good for operation.
The motor range rotation is in 0-360°, only to rotate the grinding wheel during grinding the cutting tools of different materials. Synthetically the above advantages, it can increase the safety and reduce the exchange and correction time of grinding wheel, and then increasing the controllability of cutter grinding.
Adopt high toughness FC30 iron to maintain long-term machining accuracy.
- The machine is equipped with different types of attachments for grinding lathe tool, 3-flutes milling cutter, gear hobber, and circular scudding knife, etc.
- The optional attachment 5OE can be grinded morse 4# taper spiral milling cutter, ball end milling cutter, R-type lathe tool, etc.
- The optional attachment 5OK can be grinded morse 4# taper or diameter ranges in φ3-φ32 of drill bit or PG3-PG32 of tapping head, etc.
- The optional attachment 5OK can be grinded morse 4# taper spiral (milling) cutter, etc.
- Others optional attachments as 50J and 50B, etc.
|Max. Grinding Diameter:||250MM|
|About Worktable Diameter:||350MM|
|About Workable Traveling Schedule:||150MM|
|Elevating Distance of Wheel Head:||150MM|
|Rotating Angle of Wheel Head:||360°|
|Grinding Head Speed:||5000RPM|
|Horse Power and Voltage of Motor:||3/4HP,380V|
|Inner Bore of the Grinding Work Piece:||10-50MM|
|Lateral Feeding Distance:||190MM|
|Elevating Distance of Wheel Head:||160MM|
|Height of the Head Holder:||135MM|
|Taper Hole of the Main Spindle of the Head Holder:||mo-type 4#|
|Net Weight / Gross Weight:||212KG/222KG|
|Optional Model:||50E grind spiral milling cutter ball end mill, R type lathe tool, graver and other taper milling cutter.
50K can grind drill bit, screw tap, side mill, round bar and so on.
50D can grind end mill, side mill and so on.
|About worktable diameter:||300mm||350mm|
|About worktable traveling schedule:||150mm|
|Grinding wheel size:||Φ125X50XΦ32mm||Φ150X16XΦ32mm|
The worktable of PG-600 uses the dovetail guide rail,good rigidity;

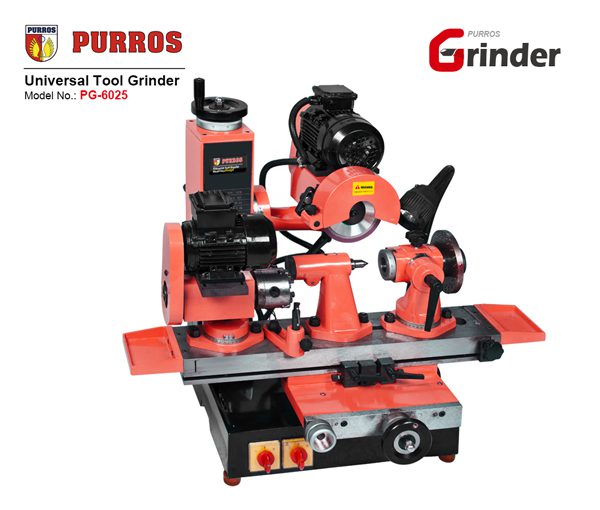

And PG-600F uses two high precision straight line roiling guide rails, steady bed platform, good movement. PG-6025 can grind in hole and outer annulus.
Standard accessories can grind slot miller, face and side cutter, lathe tool, hobbing cutter, reamer bit etc.
Choosing 50E can grind spiral milling cutter, ball end mill.
Choosing 50K can grind drill bit, screw tap.
