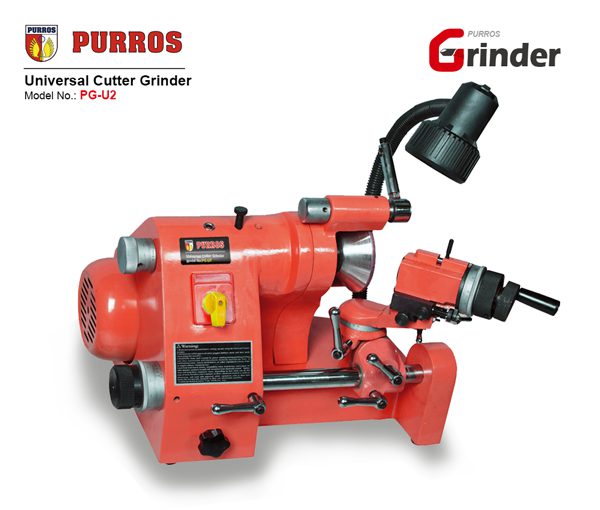

The U2 of universal cutting grinder can be used to grind all kinds of unilateral or multilateral edges of high speed and carbide-tipped cutting tools that sharps like as semi-rounded angles or negative taper angles. The indexing head of grinder can be worked in 24 directions that is easy to grind any angles and shapes, just simply replace the attachment of the dividing head without any complicated steps, that can be grinded end milling cutter, graver, drill bit, lathe tool (turning tool), and ball-end cutter, etc.
The cutter holder is full bearing type, with high accuracy, longer service life, and greater clamping range(3-28mm); can be used for grinding mill cutter, lathe tool (turning tool), and drill bit. The U2 of universal cutting grinder is equipped with carborundum wheel.
|Max. collet Capacity:||Φ25 MM|
|Max. grinding Dia.:||Φ25 MM|
|Taper Angle:||0~ 180 (degree)|
|Relief Angle:||0~ 45 (degree)|
|Negative Angle:||0~ 25 (degree)|
|Motor:||1/3HP 220V/380V 50HZ|
|Standard Model:||Type of collet: Φ4, Φ6, Φ8|
|Grinding Wheel *1|
|Twist Drill Grinding Attachment*1|
|End Mill Grinding Attachment*1|
|Lathe Tools Grinding Attachment*1|
|High-Speed Cutter Grinding Wheel*1|
|Option Model:||Type of collet: Φ3, Φ4, Φ5, Φ6, Φ8, Φ9, Φ10, Φ12, Φ14, Φ16, Φ18, Φ20, φ22, Φ25|
