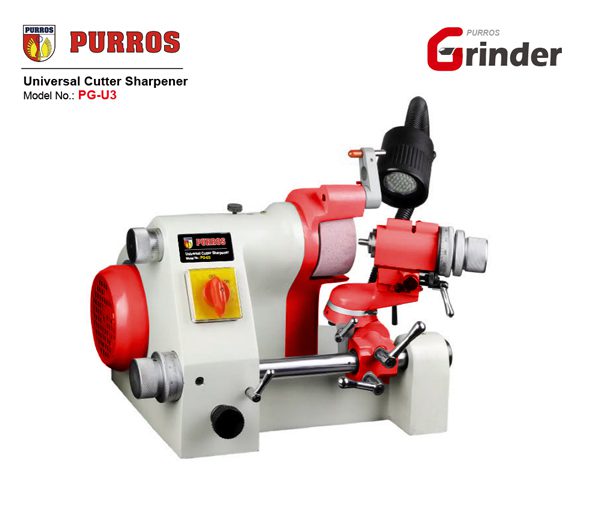

The PG-U3 of universal cutting grinder can be used to grind all kinds of unilateral or multilateral edges of high speed and carbide-tipped cutting tools. PG-U3 for grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The indexing head of grinder can be worked in 24 directions that is easy to grind any angles and shapes, just simply replace the attachment of the dividing head without any complicated steps, that can be grinded end milling cutter, graver, drill bit, lathe tool (turning tool), and ball-end cutter, etc.
The cutter holder is full bearing type, with high accuracy, longer service life; can be used for grinding mill cutter, lathe tool (turning tool), and drill bit. The U3 of universal cutting grinder is equipped with carborundum wheel.
|Max. collet capacity:||Φ18 mm|
|Max. grinding dia.:||Φ18 mm|
|Taper angle:||0~ 180 (degree)|
|Relief angle:||0~ 45 (degree)|
|Negative angle:||0~ 25 (degree)|
|Motor:||1/3HP 220V/380V 50HZ|
|Standard Equipment：||Types of collet: Φ4, Φ 6, Φ 8, Φ 10, Φ 12|
|Grinding Wheel ×1|
|Twist drill grinding attachment×1|
|End mill grinding attachment×1|
|Lathe tools grinding attachment×1|
|Option Equipment：||Types of collets: Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 9, Φ 10, Φ 12, Φ 14, Φ 16, Φ 18, Φ 20, Φ 22, Φ 25|
