PURROS PG-Y3 High-Precision Screw Tap Grinder Supplier

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

One of the most attractive features of our screw tap grinding machine is the flexibility in all terms like size of the machine, operation aspects, machining performance, device set-up in the workshop premises, and so on.

Description

PURROS PG-Y3 High-Precision Screw Tap Grinder Supplier

PURROS PG-Y3 High-Precision Screw Tap Grinder Supplier

Advantages

One of the most attractive features of our screw tap grinder machine is the flexibility in all terms like size of the machine, operation aspects, machining performance, device set-up in the workshop premises, and so on.

There are many benefits which can be listed out to highlight the performance of this equipment such as:

  1. Specially equipped tooling options which can be chosen based on the industrial requirement.
  2.  Available tooling options are front cutting lip, front cutting face, spiral flute tap cutting face, flat flute’s front cutting lip and face.
  3. One machine holds multiple grinding capacities therefore no need to shift the work material to different grinding tools for tapping operation.
  4. Provides quick change over time.
  5.  Reduces down lead time.

SPECIFICATION

Tap grinding had not been a possible machining process in earlier days, as the work material has to be fed into different sorts of grinding machines to obtain the final form of tap grinding. Tap grinders or screw tap grinding device is a recently created and most innovative form of grinder especially created for tap grinding purpose.

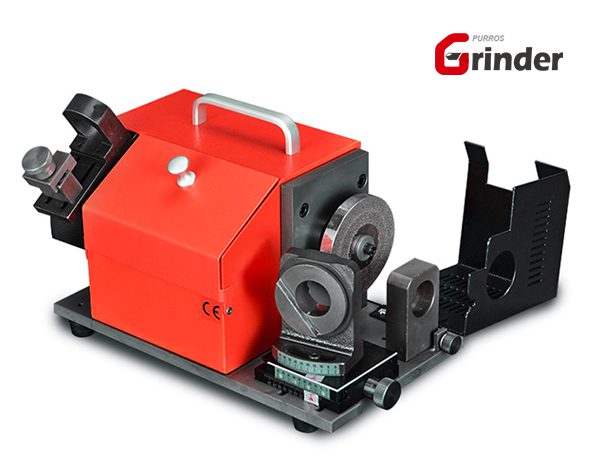

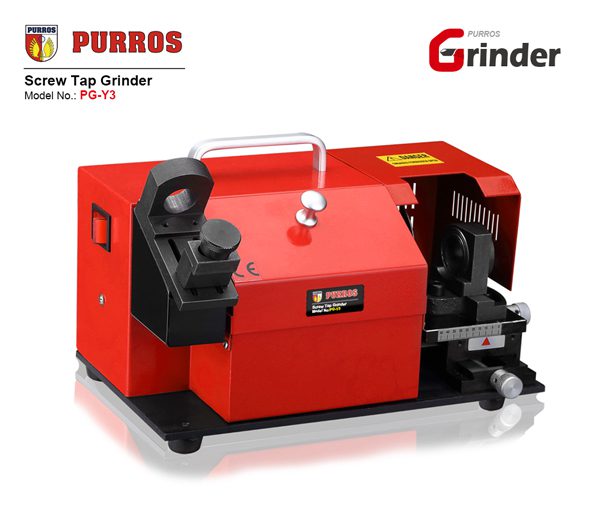

PURROS PG-Y3 screw tap grinder standard model

The standard CBN grinding wheel is suitable for the HSS material.



Model: PG-Y3
Range: M5-M20
Point Angle: 5°-30°
Voltage: 220V
Power: 180W
Motor: 5300RPM
Dimension: 35*23*24CM
Weight: 12KG
Standard Model: Grinding Wheel: CBN (for HSS)*1
Types of Collet: Φ5, Φ7, Φ8, Φ9, Φ13, Φ14
Spec of Collet Chuck: 3 flutes*1 piece;  4 flutes*1 piece
Optional Model: Grinding Wheel: SD (for Carbide)



1 review for PURROS PG-Y3 High-Precision Screw Tap Grinder Supplier

  1. Rated 5 out of 5

    When you get use to using it, it works like a charm. Very quickly and easily sharpens the drill bits.
