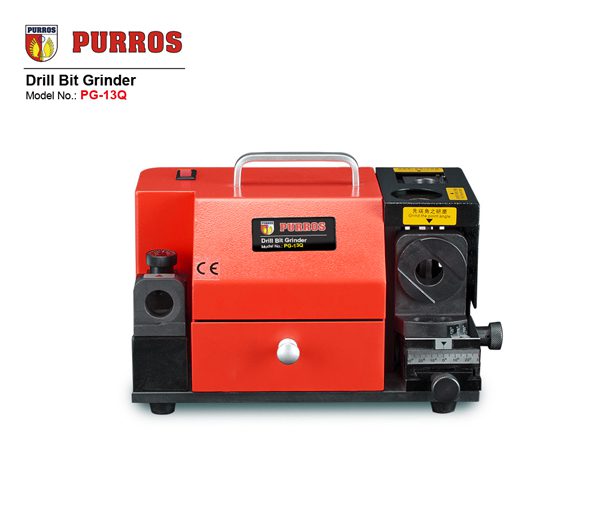

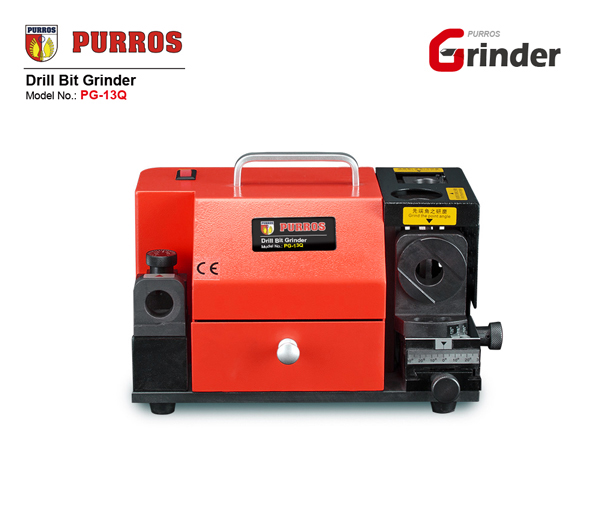

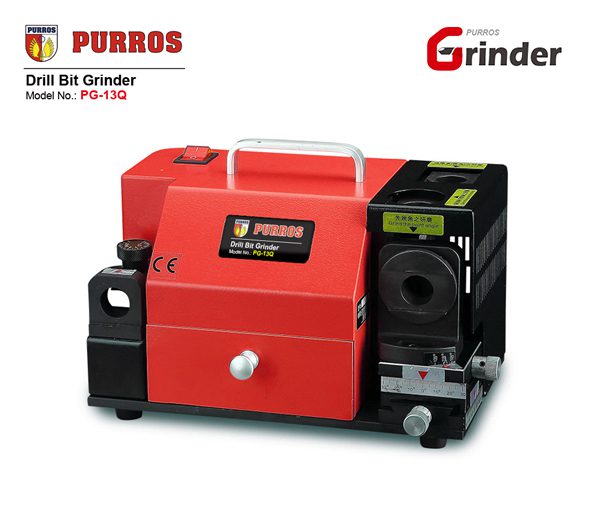

PURROS PG-13Q plate bit grinder, sheeting metal drill bit grinder

We supply compact machining devices such as drill bit grinder in different models bearing variations in drilling capacities and are suitable for complicated and minute drill bits efficiently.

Description

PRODUCT INSTRUCTION

1. PURROS PG-13Q can be used to grind the sheet metal drill and stepped drill.
2. Best metal sheet machinery in china is accurate and rapid, easy to operate, without requiring professional skills to grind.
3. With diamond grinding wheel, it is accurate and durable.

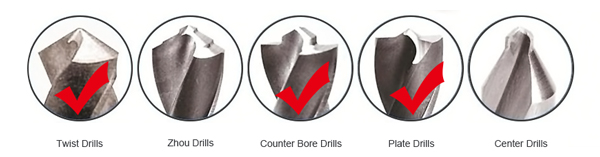

APPLICATION

SPECIFICATION



Model:  PG-13Q
Range: Φ4-Φ14
Angle: 110° ~140°
Voltage: 220V
Frequency: 50HZ
Speed: 5300RPM
Volume: 32*23*24CM
Weight: 14KG

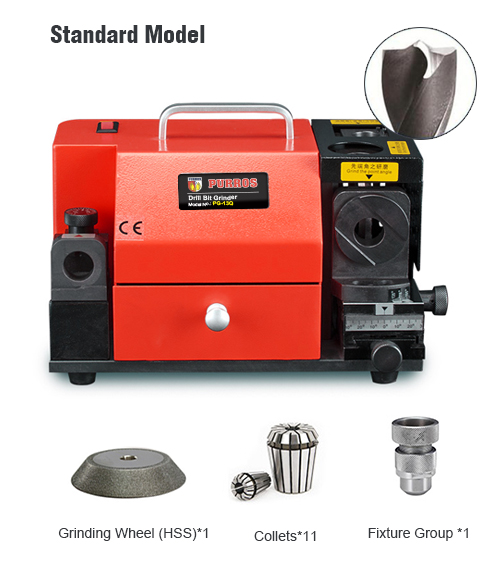

Standard Model: Grinding Wheel: CBN (for HSS)*1
Types of Collet: Φ4, Φ5, Φ6, Φ7, Φ8, Φ9, Φ10, Φ11, Φ12, φ13, Φ14
Spec of Collet Chuck: (Φ4-Φ14)*1
Optional Model: Grinding Wheel: SDC (for Carbide)*1
